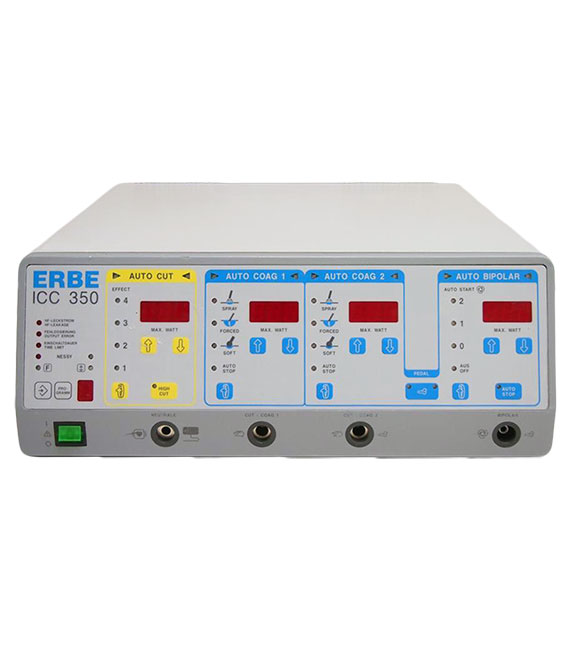

Erbe ICC 350

Description

ERBE Erbotom ICC 350 Specifications



Dimensions

• Dimensions (W x H x D): 410 × 152 × 368 mm
• Weight: 10.0 kg

Electrical

• Rated power voltage: 240V/230V/115V/110V/100V± 10%
• Rated power frequency: 50/60 Hz
• Power current: 4.0 A at 230 – 240 V/8.0 A at 100-115 V
• Power consumption in Standby mode: 25 watts
• Power consumption at max. HF power: 620 watts 920 VA
• Current consumption in Standby mode: 150 mA at 230 – 240V/300 mA at 100-115 V
• Potential equalization terminal: Yes
• Power fuses: 2 slow burn, 4 A at 230 – 240 V/8 A at 100-115 V

Cutting

• HF power adjustment: With up/down increment keys
• Form of HF voltage: Sine-shaped
• Nominal frequency of HF voltage: 330 kHz
• Cutting quality: 4 coagulation effects, selectable by key
• Constancy of the coagulation effects: Automatically regulated
• Support for initial incision and cutting: PPS, PowerPeakSystem
• Monopolar AUTO CUT: With automatic voltage control
• Monopolar HIGH CUT: with automatic arc control
• Nominal HF output: 300 watts at 500 ohms
• Peak HF power with PPS: 400 watts at 500 ohms
• Monopolar ENDO CUT: 200 watts at max 200 ohms
• BIPOLAR AUTO CUT: With automatic voltage control
• Nominal HF output: 100 watts at 500 ohms

Coagulation

• HF power adjustment: With up/down increment keys

Monopolar SOFT COAG

• Form of HF current: Sine-shaped
• Nominal frequency of HF voltage: 300 kHz
• Nominal HF output: 120 watts at 125 ohms
• End of coagulation: with Pedal or AUTO STOP

Monopolar FORCED COAG

• Form of HF current: Pulse-modulated
• Nominal frequency of HF voltage: 1 MHz
• Nominal HF output: 120 atts at 350 ohms

Monopolar SPRAY COAG

• Form of HF current: Pulse-modulated
• Nominal frequency of HF voltage: 1 MHz
• Nominal HF output: 120 watts at 500 ohms

Biopolar COAG

• Form of HF current: Sine-shaped
• Nominal frequency of HF voltage: 330 kHz
• Nominal HF output: 120 watts at 125 ohms
• Start of coagulation: By foot pedal or AUTO START
• End of coagulation: By foot pedal or AUTO STOP

Safety Precautions

• Safety class: I, corresponds to DIN IEC 601-1
• Type: CF, corresponds to DIN IEC 601-1
• Software check of LF leakage current, Icritical: 0.05mA (only with capacitive grounding)
• Software check of HF leakage current, Icritical: 150 mA/300MA
• NESSY: Neutral electrode Safety System
• Neutral electrode switching: Switch-selectable capacitively grounded or with floating power
• Self-Check: Includes all safety-related subassemblies
