Description

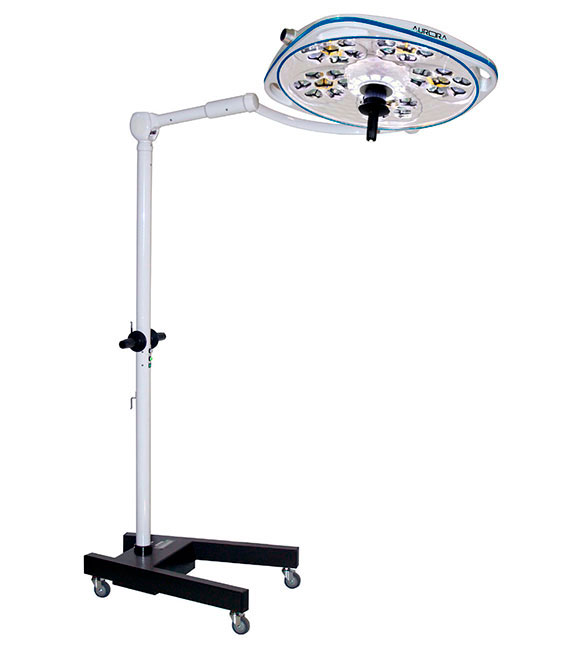

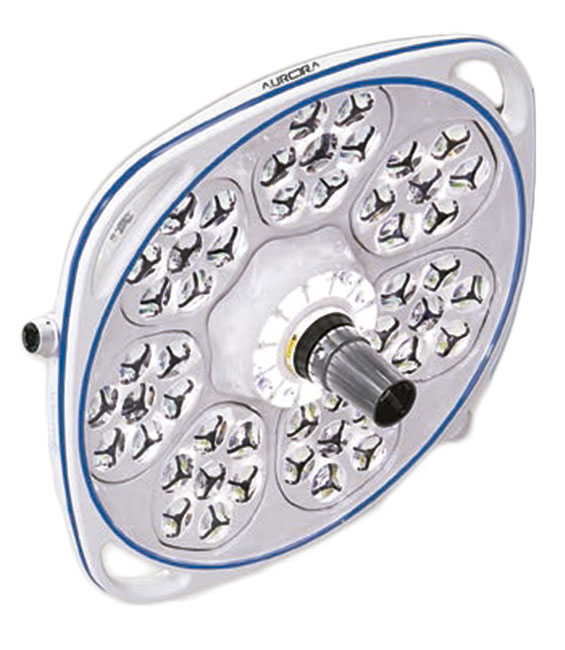

Skytron Aurora Four Specifications
Skytron’s Aurora Four surgical lighting system provides complete surgeon control of positioning, focus, and intensity from the sterilizable center handle. Energy efficient LEDs provide cool, color corrected light that is diffused evenly over the surgical site for optimum shadow reduction.
Wall Control provides controls for main power, intensity control from 0 to 100% in 5 steps for each lighthead, color temperature selection of 4100°K or 4500°K, safety fuses and LED 40,000-hour change indicator.
Sterile Handlesand various adapters are available for sterilizable handles and sterile disposable covers.
Features Include:
- Aurora Four lights can be placed further away from the patient, opening up the line-of-sight and minimizing physical contact with the fixture
- 110° vertical travel allows downward positioning for hip, OB-GYN and urology procedures
- 360° rotation on all axes and lightweight construction keep positioning simple
- Drift-free stability keeps lights exactly where needed
- Reliable performance and lower cost of ownership bring peace of mind
- Combination of fixed and variable focus LEDs produce a stunningly brilliant light
- Unique vertically segmented reflectors create a crisp, homogenous spot
- Wall intensity control offers five adjustable settings and color temperature selection
- Color temperature of 4100K illuminates deep tissue with soft, white light
- Color temperature of 4500K illuminates orthopedic procedures with bright, white light
- Optional Precision HD camera system
Dimensions
Single Head
- Fixture Weight: 120 lbs (55 kg)
- Moment Load: 425 ft lbs (576 N·m)
- Minimum Ceiling Height: 8´ 3-5/8˝ (2531mm)
- Maximum Ceiling Height: 10´ 4-1/16˝ (3151mm)

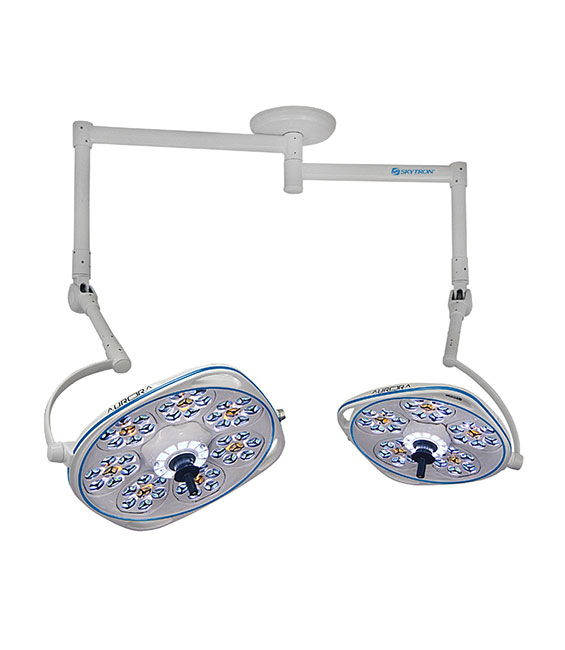

Dual Head
- Fixture Weight: 237 lbs (108 kg)
- Moment Load: 864 ft lbs (1172 N·m)
- Minimum Ceiling Height: 8´ 9-5/16˝ (2676mm)
- Maximum Ceiling Height: 10´ 3-1/4˝ (3131mm)
General
- Electrical: 100-240VAC, 95-175VA, 50/60 Hz, 1 phase
- Max Intensity at 1 meter – Single (lux): @4100K = 160,000; @4500K = 146,000
- Max Intensity at 1 meter – Dual (lux): @4100K = 320,000; @4500K = 281,000
- CRI: @4100K = 95; @4500K = 96
- Color Temperature: @4100K; @4500K
- Total Irradiance (watts/m2): @4100K = 532.3; @4500K = 475.9
- R9: @4100K = 91; @4500K = 95
